Dust Collector - DC Cyclone

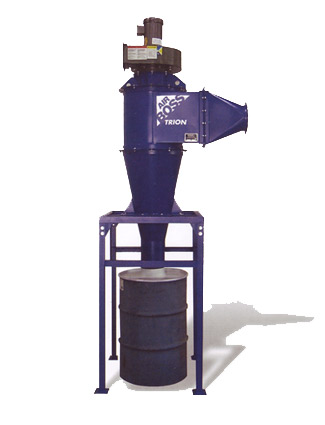

DC Cyclone Air Boss Dust Collector


The Cyclone Separators are among the most efficient and cost-effective dust collectors available. Air Boss Cyclones are offered in capacities from 800 CFM to 13,000 CFM and efficiently remove moderate to large-sized particles from the air stream. The fans are self-cleaning, material handling, radial blades designed to deliver peak airflow, and the low horsepower conserves energy.

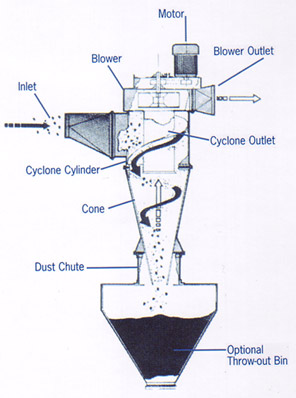

The centrifugal action of the Cyclone, created by rapid rotation of the high velocity air stream, forcibly precipitates the dust out through the bottom of the specific application. Standard dust storage capacities vary from 7.5 cu. ft. to 110 cu. ft., with special hopper configurations available. All models can be housed indoors or outdoors.


  • Afterfilter assemblies
  • Access doors
  • Sprinkler heads
  • Increased hopper clearance
  • Explosion venting
  • Non-sparking aluminum fan wheels Rotary air locks
  • Silencers

Common Applications

  • Woodworking
  • Buffing and polishing
  • Powders (material handling)
  • Rubber grinding
  • Abrasive cutting
  • Metal grinding
  • Pre-cleaning (cartridge/baghouse)

dc cyclone

~ Features ~

  • Heavy-duty construction
  • Tapered Cone design
  • No internal moving parts
  • Various sizes and configurations
  • Radial blade material handling fan
  • Small footprint

~ Benefits ~

  • Long collector life
  • High constant efficiency for large particulates
  • Provides a cleaner work environment
  • Reduced maintenance
  • Wide range of capacities to meet application requirements
  • Delivers peak airflow with the lowest horsepower
  • Saves valuable floor space
