Fiberbond Poly Panel Filters

Fiberbond Poly Panels

An economical, quality, two layer poly panel filter designed for general purpose use.

Fiberbond Poly Panels are constructed from two layers of polyester media, securely heat sealed around an internal support grid with two cross wires. The downstream media has an adhesive throughout the entire blue layer to enhance dust retention.

Poly Panels are available in 12 standard sizes along with custom sizes for special applications. A "Master Link" consisting of 36 of the same size panel can be cut off at length needed for use in side access housing. The continuous panel link provides 100% effective face area and eliminates dirt by-pass which can be a problem when using pads, throwaways, or pleats.

Poly Panel

Fiberbond Poly Panel Filter Design

Panel Links

Link Panel Filters

Poly Panel
Nominal Size*
Air Flow
Resistance
Inches
mm
CFM
M3/h
In.W.G.
PA
12x12
305 x 305
300
509
0.15"
37
12x24
305 x 610
600
1,020
0.15"
37
16x16
406 x 508
530
900
0.15"
37
16x20
406 x 610
670
1,138
0.15"
37
16x24
406 x 635
800
1,358
0.15"
37
16x25
406 x 635
840
1,426
0.15"
37
20x20
508 x 508
840
1,426
0.15"
37
20x24
508 x 610
1,000
1,698
0.15"
37
20x25
508 x 635
1,050
1,783
0.15"
37
20x50
508 x 1270
2,100
3,565
0.15"
37
24x24
610 x 610
1,200
2,037
0.15"
37
25x25
635 x 635
1,300
2,207
0.15"
37

Master Link
Nominal Size*
Number of Panels

Panel Size
Inches
mm x M
Inches
mm
12x864
305 x 21.9
36
12 x 24
305 x 610
16x720
405 x 18.3
36
16 x 20
406 x 508
16x900
405 x 22.9
36
16 x 25
406 x 635
20x576
508 x 14.6
36
20 x 16
508 x 406
20x720
508 x 18.3
36
20 x 20
508 x 508
20x864
508 x 21.9
36
20 x 24
508 x 610
20x900
508 x 22.9
36
20 x 25
508 x 635
24x432
610 x 610
36
24 x 12
610 x 305
24x720
610 x 18.3
36
24 x 20
610 x 508
24x864
610 x21.9
36
24 x 24
610 x 610
25x576
635 x 14.6
36
25 x 16
635 x 406
25x720
635 x 18.3
36
25 x 20
635 x 508
25x450
635 x 11.4
18
25 x25
635 x 635

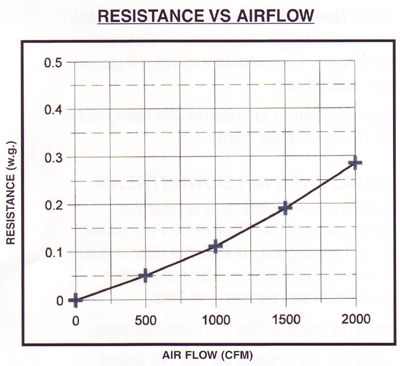

Poly Panel Filter Airflow Chart
Poly Panel Filter Efficiency Chart

Use link panels for easy installation in filter tracks and eliminate air bypass!

Link panels make installation easy. Just unfold the filter and slide it into the track as one continuous, long filter. When it's time to replace, the whole filter comes out easily in one piece. Plus, the sealing between links and the generous selvedge eliminates air bypass.

Filter Link Track
