3V Cell Filters

3V cell filter

Fiber Technology

The patented fiber technology utilized in this filtration media is the latest in "Media Configuration". The cell filters media is non-shedding, gradient density, blended media. It is manufactured by building up progressively smaller and smaller continuous filament non-shedding fibers in a single thermally bonded web. Media fiber size varies from 40 plus microns in diameter on the air entering side to well into the sub-micron range on the air leaving side.

This engineered media concept brings into play all the fundamental mechanical principles of particulate capture. Larger particles of dust are caught by larger fibers on the air entering side and progressively smaller particles are caught in progressively smaller fibers through the depth of the media. The capture principals of impingement, straining, interception and diffusion are all utilized.


Pack Design

The pleat pack is fabricated from a blended media. Utilizing a glue bead separator. Controlled spacing of pleat tips and spacers are thermally formed to produce a strong aerodynamic shape. This "Design Configuration" controlled spacing allows for the 3V Cell Filter to promote diffusion of air properly over the entire pleated surface.

The media pack is bonded to the inside perimeter of the enclosure frame by a thermo plastic, hot-melt adhesive, providing a continuous and positive seal.


Frame Design

The all synthetic composition of frame, media pack and separators are not adversely affected by moisture and do not support the growth of microbial organisms such as bacteria, mold and fungi, etc.

The standard offering is rated by Underwriters Laboratories as Class II, per UL Standard 900.

The 3V Cell Filter is designed so as to work suitably within built up filter banks and/or side access systems. The standard offering includes a single, molded 7/8 header.

Rigid construction, extended surface, low initial pressure drop measured in inches w.g., long service life and savings in energy costs are features and benefits which make the 3V Cell Filter an excellent option for meeting the requirements of medium to high efficiency filtration.


Technical Data

  • No metal or toxic off gassing.
  • Inherent antimicrobial properties due to inorganic construction.
  • UL/CUL Class II listed and approved by UL Standard 900.
  • Continuous operating temperature limitations: 125% of manufactures rated airflow.
  • Manufactures recommended final resistance is 1.50" W.G.
  • Independent Laboratory Breach Test results show filter integrity up to 25" W. G. pressure.

V3 cell filterAvailable Cell Filter Sizes:
(Nominal / W x H x D)


  • 24x24x12
  • 24x12x12
  • 24x20x12






Benefits

  • High efficiency
  • High airflow capacity
  • Light weight
  • Resistant to most chemicals
  • Can be incinerated for disposal

More Benefits

  • Low airflow resistance
  • Longer service life
  • Moisture proof construction
  • Will not corrode
  • Will not support microbial growth

 Replacement for American Air Filter VariCell® V

Description

The 3V Cell Filters are high-efficiency air filters designed to handle virtually any HVAC application. Each filter utilizes a technologically advanced media that incorporates a dual-layer, gradient-density fiber structure that results in exceptionally low airflow resistance, at the highest efficiency levels reducing both energy and operating costs.

These high-performance filters will improve indoor air quality and remove contaminants from HVAC environments. 3V Cell Filters are engineered to protect both expensive HVAC equipment and workers from dirty air and its damaging effects. The user friendly filter is also lightweight, durable and easy to install.


3V Specs
3V MERV 16 Specs

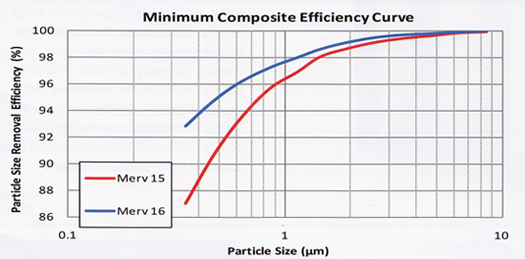

3V efficiency curve

3V resistance curve
