Electronic Air Cleaners


T Series Electronic Air Cleaner

Solutions For Clean Air

Trion's T series is ideal for the removal of smoke, fumes, and oil/coolant smoke and mist.

The T series has the ability to clean contaminated indoor air and recirculate it back to the work area, reducing energy costs by not having to exhaust conditioned air to the outside. Any of the T series can be installed free hanging or ducted for source capture.

BENEFITS

• Ceramic insulators - out of airstream for increased reliability
• Extra depth collector cell - more dirt holding capacity and stays on line longer
• Spiked ionizer - no ionizing wires to replace, reducing maintenance and replacement cost
• High efficiency - up to 95% on single pass and 99% on double pass option
• Permanent ionizer/collector elements - no filter replacement cost: just wash, dry and install
• Low pressure drop - lower energy cost to operate compared to media and cartridge units
• Hinged access - no tools required for quick and easy service

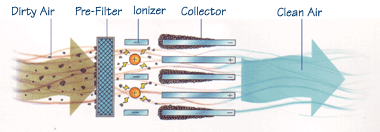

How it works

The T series utilizes the principle of Electrostatic Precipitation. Air is drawn by the motor/blower through a washable metal mesh pre-filter which traps large dust particles. The remaining particles, some are as small as 0.01 microns, pass into a strong electrical field (ionizing section) where the particulate receives an electrical charge. The charged particles then pass into a collector plate section made up of a series of equally spaced parallel plates. Each alternate plate is charged with the same polarity as the particles, which repel, while the interleaving plates are grounded, which attract and collect.
